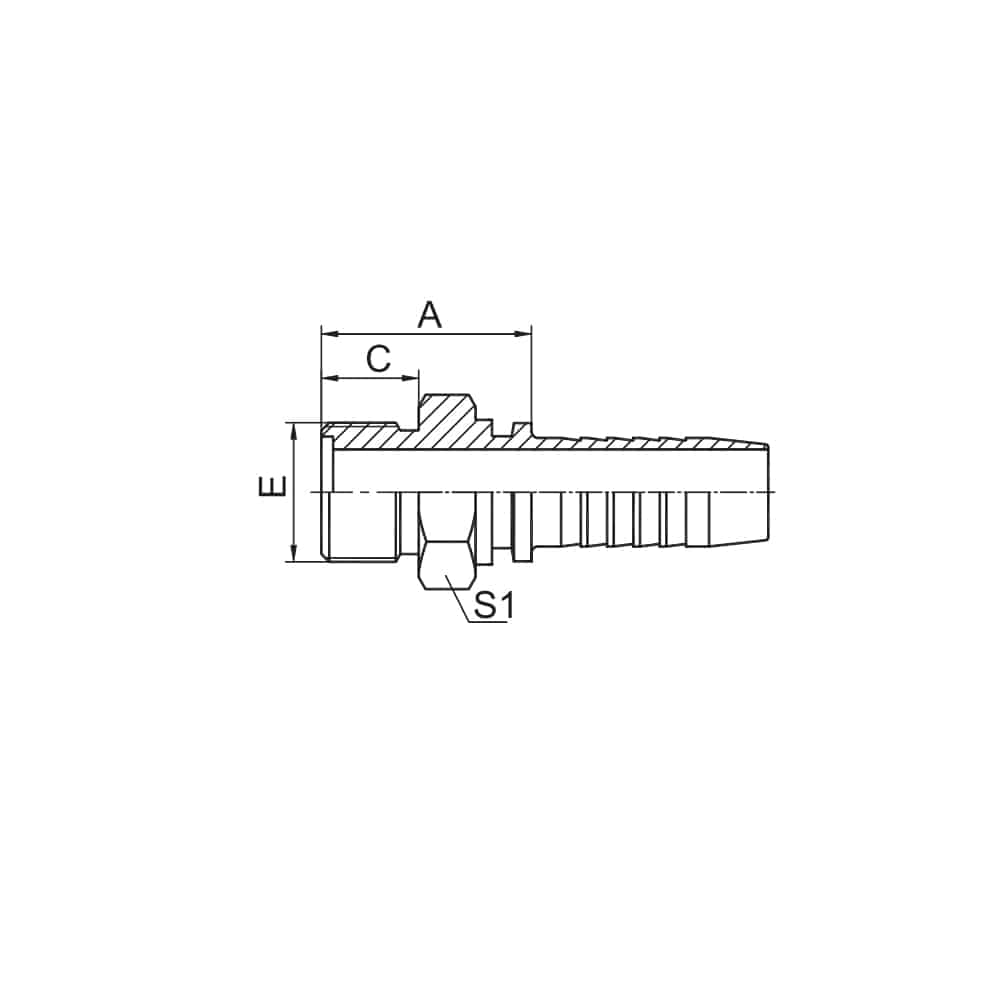

| PART NO. | ETHREAD E | HOSE BORE | DIMENSIONS | |||
| DN | DASH | A | C | S1 | ||
| 10311-12-04 | M12X1.25 | 6 | 4 | 22.5 | 10 | 14 |
| 10311-14-04 | M14X1.5 | 6 | 4 | 23.5 | 11 | 14 |
| 10311-16-04 | M16X1.5 | 6 | 4 | 23.5 | 11 | 17 |
| 10311-16-05 | M16X1.5 | 8 | 5 | 23.5 | 11 | 17 |
| 10311-16-06 | M16X1.5 | 10 | 6 | 23.5 | 11 | 17 |
| 10311-18-06 | M18X1.5 | 10 | 6 | 23.5 | 11 | 19 |
| 10311-22-05 | M22X1.5 | 8 | 5 | 27 | 12 | 24 |
| 10311-22-06 | M22X1.5 | 10 | 6 | 26 | 12 | 24 |
| 10311-22-08 | M22X1.5 | 12 | 8 | 26.5 | 12 | 24 |
| 10311-27-10 | M27X1.5 | 16 | 10 | 31.5 | 13 | 30 |
| 10311-30-12 | M30X1.5 | 20 | 12 | 33.5 | 14 | 32 |
| 10311-36-12 | M36X2 | 20 | 12 | 35.5 | 16 | 38 |
| 10311-36-14 | M36X2 | 22 | 14 | 35.5 | 16 | 38 |
| 10311-39-16 | M39X2 | 25 | 16 | 39 | 16 | 41 |
| 10311-45-20 | M45X2 | 32 | 20 | 44.5 | 20 | 46 |
| 10311-52-24 | M52X2 | 40 | 24 | 47.5 | 22 | 55 |
| 10311-64-32 | M64X2 | 50 | 32 | 52.5 | 27 | 65 |
Note: 1.For use with braided hoses.
2.It use with spiral hoses,hose fitting series number is 10312-xx-xx.
