2P143 Female SAE 45° Hydraulic Hose Fitting

2P143 Female SAE 45° Hydraulic Hose Fitting

2P143 Female SAE 45° Hydraulic Hose Fitting

43 Series Fittings

ISO 12151-5

Own Brand: Gemco

Model: 2P143

Executive Standard：GEMCO Standard

Optional Material：Carbon steel, 304, 316

Thread Form：Metric, US, Imperial

Stripping Form：NO-SKIVE

Fitting Advantage：Simple and easy to operate, reduce labor costs

Use with hose: 1SN,2SN,R1AT,R2AT,1SC,2SC,R16,R17,2ST,1SK,2SK,R3,R4,R6,1TE,2TE,3TE

Send Inquiry Live Chat

Product Details

2P143 Female SAE 45° Hydraulic Hose Fitting

GEMCO is a hydraulic system products factory integrating R&D, production, wholesale and sales. It provides the production, testing and delivery of high pressure ball valves hydraulic hoses assembly, quick coupling, connectors, assemblies, 2P143 Female Hydraulic Hose Fitting and other industrial partes for various hydraulic demand fields domestic and abroad. One-stop service with high quality and fast delivery is available.

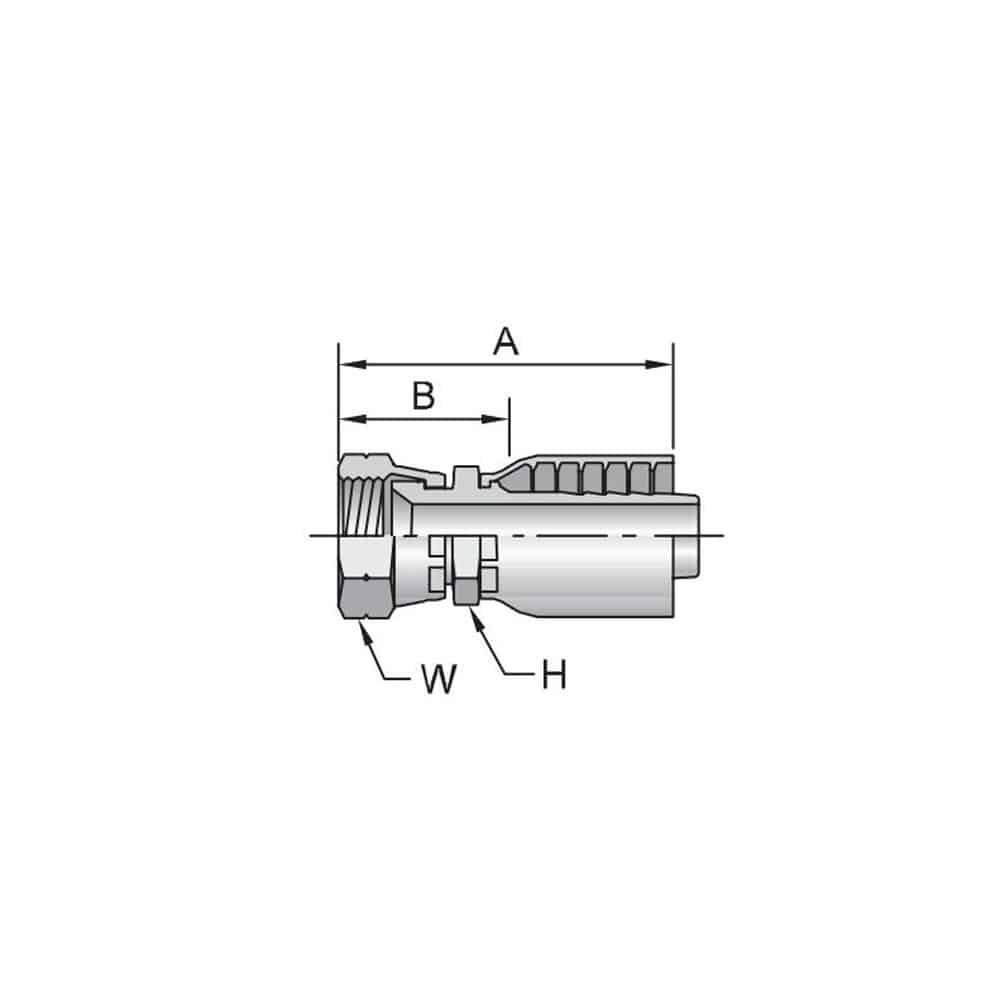

Part Number	Thread inch		Hose I.D. inch	A inch	A mm	H inch	W inch	B inch	B mm
2P143-6-4 2P143-6-6 2P143-12-12	3/8 3/8 3/4	5/8×18 5/8×18 1-1/16×14	1/4 3/8 3/4	2.11 2.38 3.17	54 60 81	3/4 3/4 1-1/16	3/4 3/4 1-1/4	1.36 1.35 1.73	35 34 44
