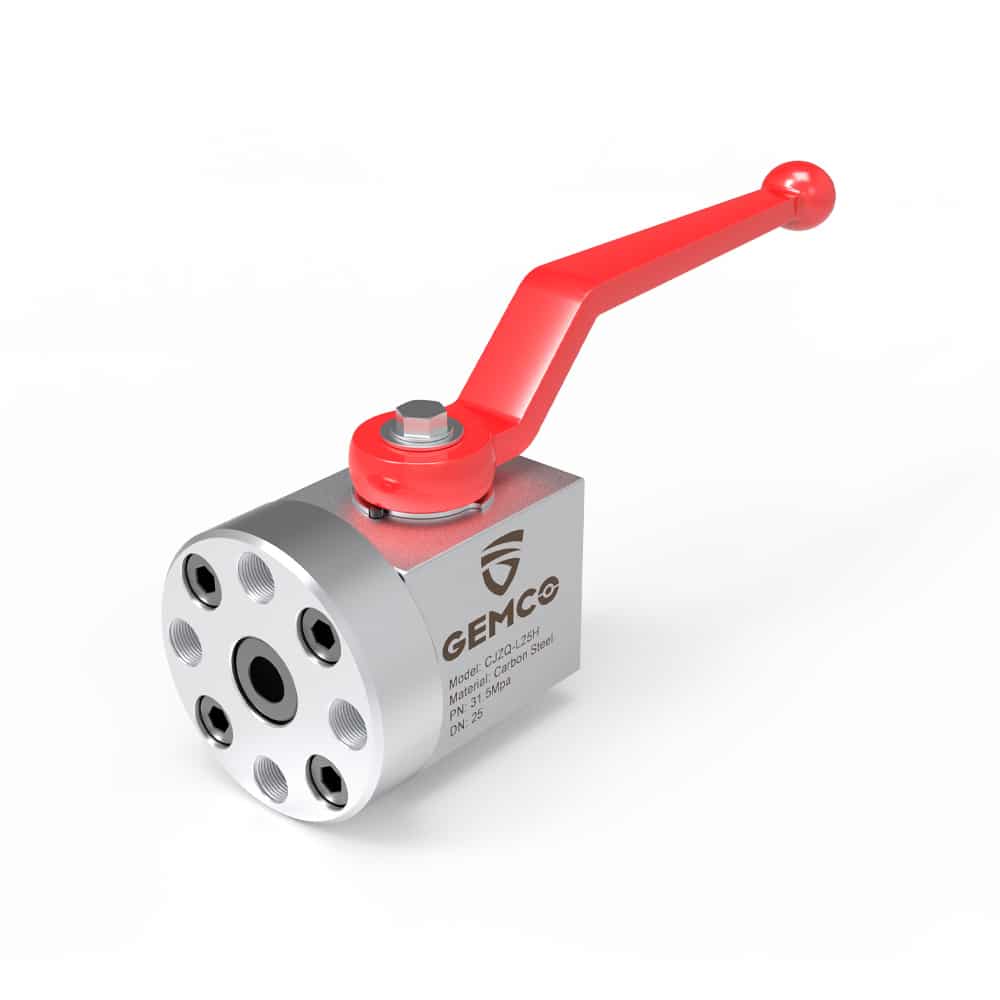

CJZQ Series Globe Ball Valve

Model：CJZQ Series Globe Ball Valve (Male Thread Join)

Joint Standard: SAE J518C standard

Pressure Grade: 210.420 bar

Nominal Diameter:13/20/255/32 40/50mm
Valve Body and joint material: Carbon steel
Ball and control mandrel material: Carbon steel
Ball seal:POM
Joint seal and Control mandrel seal: NBR/FPM
Handle Type: Casting zinc crooked handle
Surface treatment: Zinc plated

Send Inquiry Live Chat
  • Product Details

Male Thread Join



Model D0 A L1 L2 L3 H H2 D1 h  SW
CZJQ-L6H 6 34 72 48 12 31.5 44.5 6 11 1.4 9 M16*1.5
CZJQ-L8H 8 46 86 58 14 36 58.5 8 16 1.8 9 M22*1.5
CZJQ-L10H 10 52 100 70 15 40.5 65 8 20 1.8 9 M27*1.5
CZJQ-L15H 13 CG
JO		 105 73 16 42.5 68.5 8 24 1.8 9 M30*1.5
CZJQ-L2OH 18 65 121 85 18 49 83 12 30 2.4 14 M36*2
CZJQ-L25H 22 68 135 95 20 56 86 12 35 2.4 14 M42*2
CZJQ-L32H 30 85 160 116 22 70.5 105.5 14 40 2.4 17 M52*2
CZJQ-L40H 36 90 180 120 30 79 110.5 14 45 2.4 17 M60*2
CZJQ-L50H 46 120 206 136 35 96 140.5 14 60 2.4 17 M72*2
