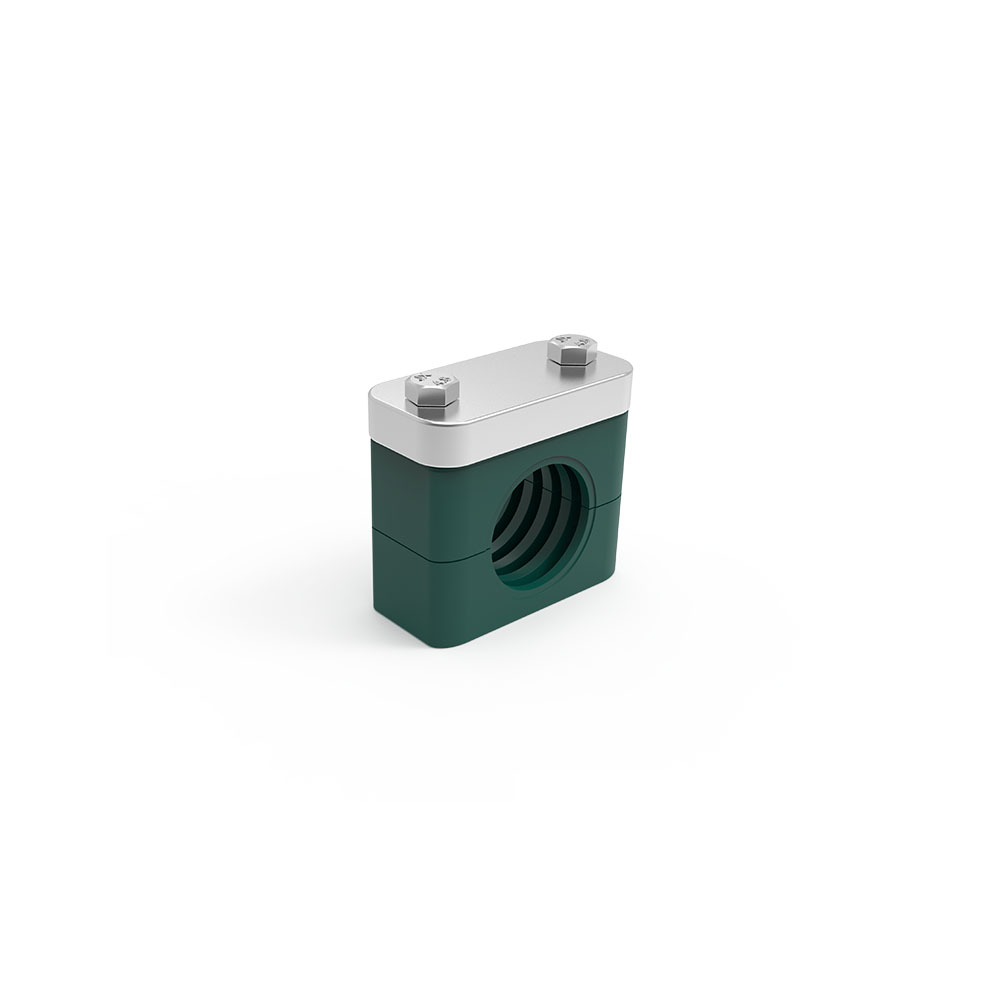

TH-G16 Heavy Duty Pipe Clamps

A large scale manufacturer of hydraulic TH-G16 Heavy Duty Pipe Clamps, we can provide high quality and low cost clamps to our customers in different countries in the shortest delivery time.

series	Order code	D1 O.D. Pipe	Inch bore	Inch O.D	clamp body					cover plate					bolt
series	Order code	D1 O.D. Pipe	Inch bore	Inch O.D	L1	L2	H	S	B	L1	L2	S	B	D1	bolt
H1	TH*G16-106	6			55	33	32	2	30	55	33	8	30	11	M10*45
	TH*G16-108	8
	TH*G16-109.5	9.5		3/8
	TH*G16-110	10	1/8
	TH*G16-112.7	12.7		112
	TH*G16-113.5	13.5	1/4
	TH*G16-114	14
	TH*G16-115	15
	TH*G16-116	16		516
	TH*G16-117.2	17.2	3/8
	TH*G16-118	18
H2	TH*G16-218	18			70	45	48	2	30	70	45	8	30	11	M10*60
	TH*G16-219	19		3/4
	TH*G16-220	20
	TH*G16-221.3	21.3	1/2
	TH*G16-222	22		7/8
	TH*G16-225	25		1
	TH*G16-226.9	26.9	3/4
	TH*G16-228	28
	TH*G16-230	30
H3	TH*G16-330	30			85	60	60	2	30	85	60	8	30	11	M10*70
	TH*G16-332	32		11/4
	TH*G16-333.7	33.7	1
	TH*G16-335	35
	TH*G16-338	38		11/2
	TH*G16-340	40
	TH*G16-342	42	11/4
H4	TH*G16-442	42	11/4		115	90	89	3	45	115	90	10	45	14	M12*100
	TH*G16-444.5	44.5		13/4
	TH*G16-448.3	48.3	11/2
	TH*G16-450.8	50.8		2
	TH*G16-455	55
	TH*G16-457	57		21/4
	TH*G16-460.3	60.3	2
	TH*G16-463.5	63.5		21/2
	TH*G16-465	65
	TH*G16-470	70
H5	TH*G16-570	70			150	122	120	3.5	60	150	122	10	60	18	M16*130
	TH*G16-575	75
	TH*G16-576.1	76.1	21/2	3
	TH*G16-580	80
	TH*G16-582.5	82.5		31/4
	TH*G16-588.9	88.9	3
H6	TH*G16-688.9	88.9	3		205	168	167	4	80	205	168	15	80	22	M20*190
	TH*G16-6100	100
	TH*G16-6102	102	31/2
	TH*G16-6108	108		41/4
	TH*G16-6114	114	4
	TH*G16-6127	127		5
	TH*G16-6133	133		51╱4
H7	TH*G16-7133	133		51/4	250	205	200	4	90	250	205	15	90	26	M24*220
	TH*G16-7140	140	5
	TH*G16-7152	152		6
	TH*G16-7159	159		61 4
	TH*G16-7165	165		61, 2
	TH*G16-7168	168	6
H8	TH*G16-8168	168	6		336	265	270	5	120	336	285	25	120	35	M3O*300
	TH*G16-8177.8	177.8		7
	TH*G16-8193.7	193.7		75/8
	TH*G16-8216	216		81/2
	TH*G16-8219	219	8
H9	TH*G16-9219	219	8		470	395	410	8	160	470	395	30	160	25	M3O*300
	TH*G16-9273	273	10
	TH*G16-9324	324	12
H10	TH*G16-10356-10406	356-406	14-16		630	534	530	20	180	630	534	30	180	35	M30*560
H11	TH*G16-11419-11508	419-508	18-20		788	670	660	40	230	788	670	40	230	40	M30*710
