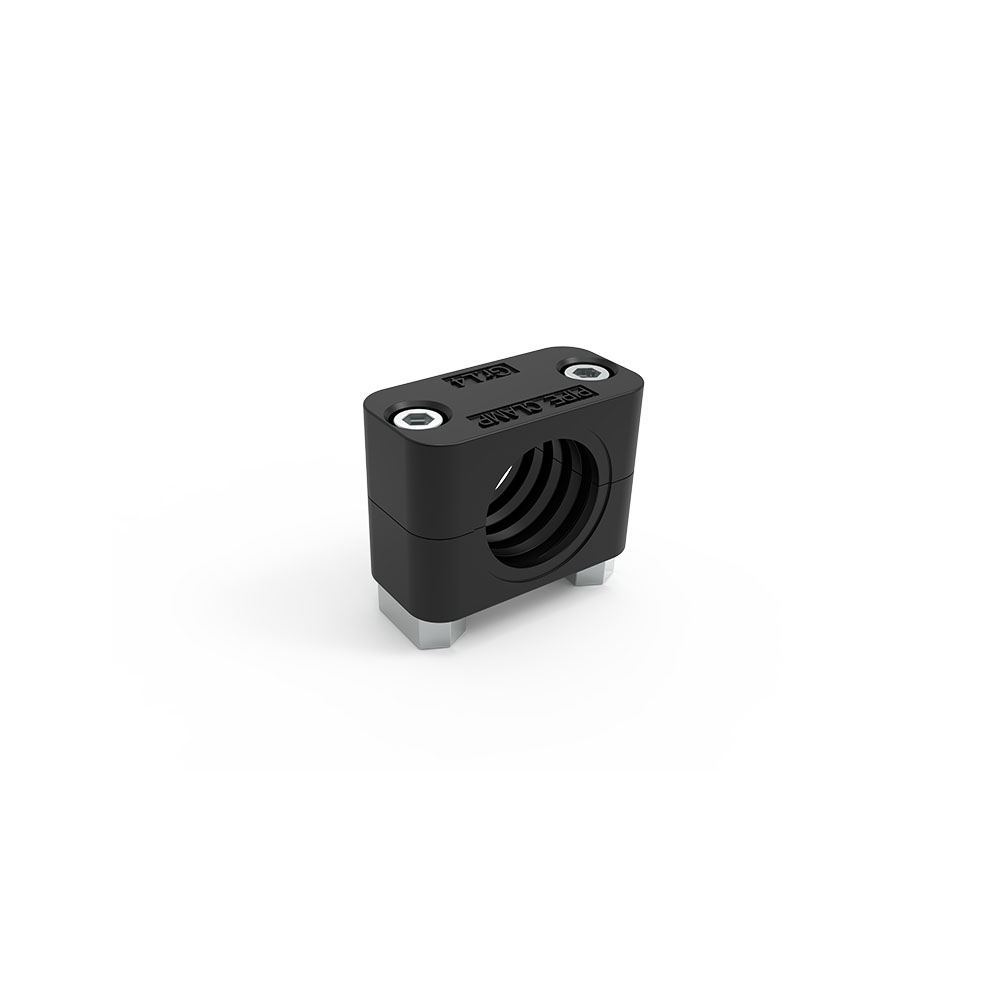

TL-G10 Light Duty Pipe Clamps

A large scale manufacturer of hydraulic TL-G10 Light Duty Pipe Clamps, we can provide high quality and low cost clamps to our customers in different countries in the shortest delivery time.

series	Order code	D1 O.D. Pipe	Inch bore	Inch O.D	clamp body					bolt
series	Order code	D1 O.D. Pipe	Inch bore	Inch O.D	L1	L2	H	S	B	bolt
L0	TL*G10-006	6			28		27	0.4	30	M6X20
	TL*G10-006.4	6. 4		1/4
	TL*G10-008	8		5/16
	TL*G10-009.5	9.5		3/8
	TL*G10-010	10	1/8
	TL*G10-012	12
L1	TL*G10-106	6			37	20	27	0.4	30	M6X200
	TL*G10-106.4	6.4		1/4
	TL*G10-108	8		5/16
	TL*G10-109.5	9.5		3/8
	TL*G10-110	10	1/8
	TL*G10-112	12
L2	TL*G10-212.7	12.7		1/2	42	26	33	0.6	30	M6X25
	TL*G10-213.5	13.5	1/4
	TL*G10-214	14
	TL*G10-215	15
	TL*G10-216	16		5/8
	TL*G10-217.2	17.2	3/8
	TL*G10-218	18
L3	TL*G10-319	19		3/4	50	33	36	0.6	30	M6X30
	TL*G10-320	20
	TL*G10-321.3	21. 3	1/2
	TL*G10-322	22		7/8
	TL*G10-325	25		1
L4	TL*G10-426.9	26.9	3/4		59	40	42	0.6	30	M6X35
	TL*G10-428	28
	TL*G10-430	30
L5	TL*G10-532	32		11/4	71	52	58	0.8	30	M6X50
	TL*G10-533.7	33.7	1
	TL*G10-535	35
	TL*G10-538	38		11/2
	TL*G10-540	40
	TL*G10-542	42	11/4
L6	TL*G10-644.5	44. 5		13/4	86	66	66	0.8	30	M6X60
	TL*G10-648.3	48.3	11/2
	TL*G10-650.8	50. 8		2
L7	TL*G10-757.2	57.2		21/4	121	94	93	0.8	30	M6X85
	TL*G10-760.3	60.3	2
	TL*G10-763.5	63.5		21/2
	TL*G10-770	70		23/4
	TL*G10-773	73
	TL*G10-776.1	76. 1	21/2	3
L8	TL*G10-888.9	88.9	3		147	120	118	0.8	30	M6X110
L8	TL*G10-8102	102		4	147	120	118	0.8	30	M6X110
