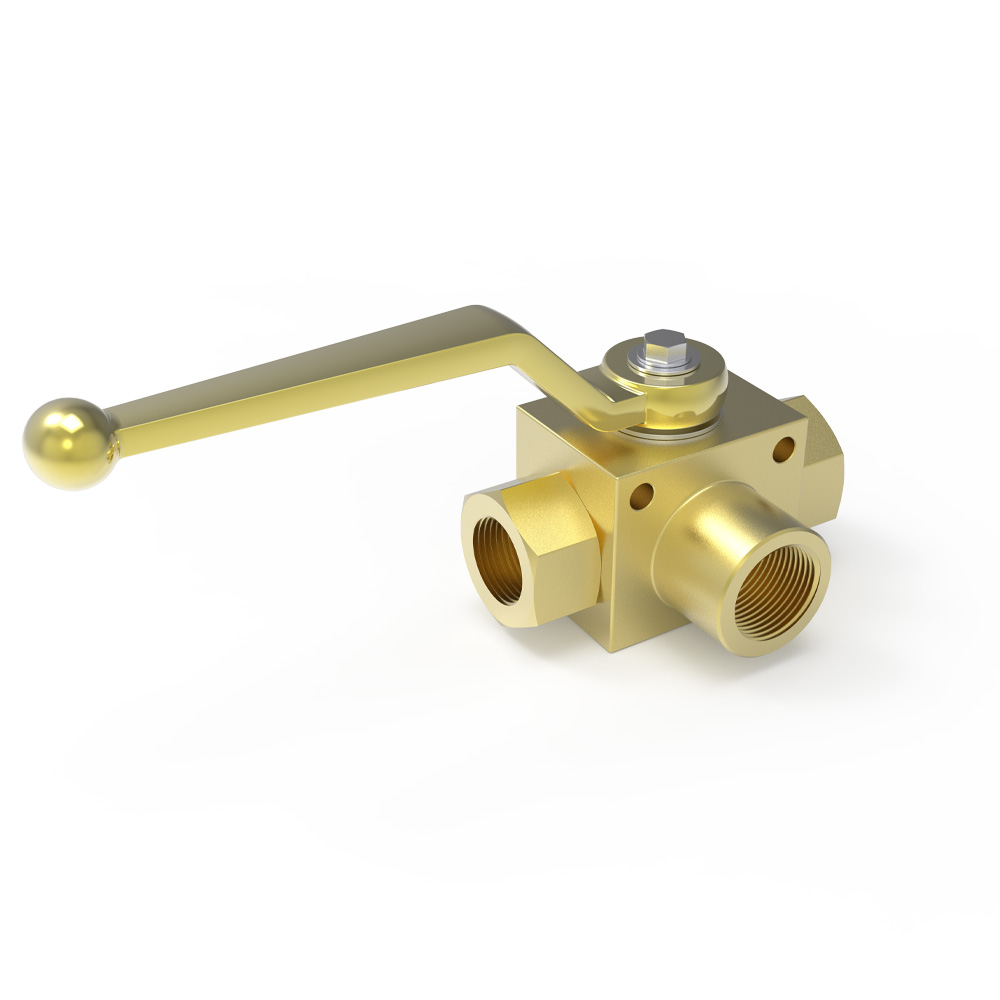

VH3V Series Two-position Three-way High Pressure Ball Valve

Model：VH3V Series Two-position Three-way High Pressure Ball Valve

Joint Standard: SAE J518C standard

Pressure Grade: 210.420 bar

Nominal Diameter:13/20/255/32 40/50mm
Valve Body and joint material: Carbon steel
Ball and control mandrel material: Carbon steel
Ball seal:POM
Joint seal and Control mandrel seal: NBR/FPM
Handle Type: Casting zinc crooked handle
Surface treatment: Zinc plated

Send Inquiry Live Chat
  • Product Details
  • Joint Code: G**
  • Joint Code: NPT**
  • Joint Code: **SR
  • Joint Code: **LR




Model PN
(bar)		 DN LW RA d1 I L L1 B L2 H1 H2 SW1 SW2 D H3 L3 D1 C
VH3V-M16x1.5 500 06 06  11 M16x1.5  11 69 40 26 31.5 13.5 35 09 22 4.5 4.8 26 6 4
VH3V-M27x1.5 500 10 10  20 M27x1.5  12 76 42 32 31.5 16 40 09 27 5.3 5.8 31 8 4
VH3V-M36x2 315 20 20  30 M36x2  15 103 60 48 48.5 25 58 12 41 6.5 6 44 15 5.5
VH3V-M42x2 315 25 23  35 M42x2  18 116 65 57 50.5 28.5 65 12 46 8.5 7 53.5 22 5
Model PN
(bar)		 DN LW RA d1 I L L1 B L2 H1 H2 SW1 SW2 D H3 L3 D1 C
VH3V-G1/4 500 06 06 / G1/4  14 69 40 26 31.5 13.5 35 09 22 4.5 4.8 26 6 4
VH3V-G3/8 500 10 10 / G3/8  14 72 42 32 31.5 16 40 09 27 5.3 5.8 31 8 4
VH3V-G1/2 500 13 12 1 G1/2  16 83 48 35 38.5 18 45 9 30 6.5 6 35 12 3
VH3V-G3/4 315 20 20 / G3/4  18 93 60 50 48.5 23 58 12 41 6.5 6 44 15 5.5
VH3V-G1 315 25 25 / G31  21 115 65 57 50.5 27.5 65 12 46 8.5 7 53.5 22 5
Model PN
(bar)		 DN LW RA d1 I L L1 B L2 H1 H2 SW1 SW2 D H3 L3 D1 C
VH3V-NPT1/4 500 06 06 / NPT1/4  14 69 40 26 31.5 13.5 35 09 22 4.5 4.8 26 6 4
VH3V-NPT3/8 500 10 10 / NPT3/8  14 72 42 32 31.5 16 40 09 27 5.3 5.8 31 8 4
VH3V-NPT1/2 500 13 12 / NPT1/2  16 83 48 35 38.5 18 45 09 30 6.5 6 35 12 3
VH3V-NPT3/4 315 20 20 / NPT3/4  18 95 60 50 48.5 23 58 12 41 6.5 6 44 15 5.5
VH3V-NPT1 315 25 25 / NPT1  21 113 65 57 50.5 27.5 65 12 46 8.5 7 53.5 22 5
Model PN
(bar)		 DN LW RA d1 I L L1 B L2 H1 H2 SW1 SW2 D H3 L3 D1 C
VH3V-10SR 500 06 06  10 M18x1.5  12 73 40 26 31.5 13.5 35 09 22 4.5 4.8 26 6 4
VH3V-14SRR 500 10 10  14 M22x1.5  11 80 42 32 31.5 16 40 09 27 5.3 5.8 31 8 4
VH3V-16SRR 500 13 12  16 M24x1.5  12 86 48 35 38.5 18 45 09 30 6.5 6 35 12 3
VH3V-20SR 500 13 12  20 M30x1.5  12 90 48 35 38.5 18 45 09 30 6.5 6 35 12 3
VH3V-25SR 315 20 20  25 M36x2  14 109 60 50 48.5 23 58 12 41 6.5 6 44 15 5.5
VVH3V-30SR 315 25 14  30 M42×2  14 120 65 57 50.5 27.5 65 12 46 8.5 7 53.5 22 5
Model PN
(bar)		 DN LW RA d1 I L L1 B L2 H1 H2 SW1 SW2 D H3 L3 D1 C
VH3V-08LR 500 06 06 8 M14x1.5  10 67 40 26 31.5 13.5 35 09 22 4.5 4.8 26 6 4
VH3V-12LR 500 10 10  12 M18x1.5  11 74 42 32 31.5 16 40 09 27 5.3 5.8 31 8 4
VH3V-15LR 500 13 12  15 M22x1.5  12 82 48 35 38.5 18 45 09 30 6.5 6 35 12 3
VH3V-18LR 500 13 12  18 M26x1.5  12 82 48 35 38.5 18 45 09 30 6.5 6 35 12 3
VH3V-22LR 315 20 19  22 M30x2  14 101 60 50 48.5 23.0 58 12 41 6.5 6 44.0 15 6
WH3V-28LR 315 25 24  28 M36x2  14 108 65 57 50.5 27.5 65 12 46 8.5 7.0 54 22 5
